FINE 608 BATTEN
OVERVIEW

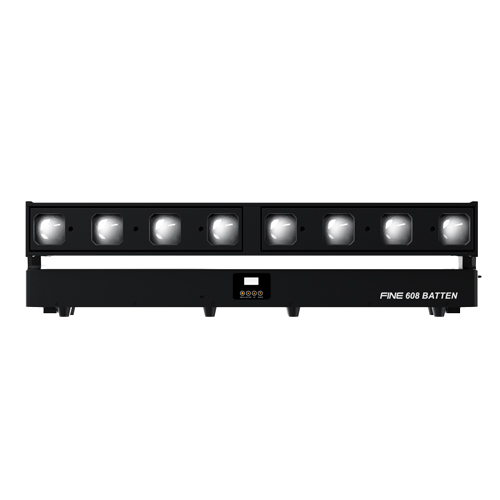

FINE 608 BATTEN is an LED moving head bar effect light featuring 8pcs 60W RGBW LEDs, with a lifespan of over 50,000 hours and light output exceeding 6,000 lumens. It utilizes a unique optical design with a wide zoom range of 5° to 50°; the narrow beam angle provides a strong, full light without overlap, while the wide angle offers excellent color mixing. The two zoom system automatically retracts when signal is disconnected, preventing damage during assembly and transport. The Y-axis can rotate up to 200°. It includes 100 built-in color macros and 47 effect macros. The product has compact structure, with a housing made of aluminum alloy and engineering plastic, making it smaller and lightweight, only 18 kg, making it ideal for entertainment, rental, television, weddings, bars, and variety shows.
TECHNICAL SPECIFICATION
LIGHT SOURCE
  • 8 pcs 60W RGBW 4 in 1 LEDs

  • Average Life expectancy≥ 50,000 h

  • 8 pcs 60W RGBW 4 in 1 LEDs

  • Average Life expectancy≥ 50,000 h

OPTICAL SYSTEM
  • Beam Angle: 5 °- 50°

  • Glass light guide + High-quality PMMA optical lens

  • Color Temperature: 2700K-8000K

  • Beam Angle: 5 °- 50°

  • Glass light guide + High-quality PMMA optical lens

  • Color Temperature: 2700K-8000K

MOVEMENT PARAMETER
  • Tilt 200°

  • Tilt 200°

CONTROL AND PROGRAMMING
  • Control channel: Standard (15) /RGB (39)/RGBW (47) / Sharp (27)

  • Protocol: DMX512, RDM, Art-net, sACN

  • DMX Connector: 3-pin XLR input/ output (5-pin for option), RJ45 Network input/output

  • Control channel: Standard (15) /RGB (39)/RGBW (47) / Sharp (27)

  • Protocol: DMX512, RDM, Art-net, sACN

  • DMX Connector: 3-pin XLR input/ output (5-pin for option), RJ45 Network input/output

POWER SUPPLY
  • 100-240V~, 50/60Hz

  • Switch Power supply

  • Input power: 450W

  • PF≥0.98

  • 100-240V~, 50/60Hz

  • Switch Power supply

  • Input power: 450W

  • PF≥0.98

DIMENSION AND WEIGHT
  • Fixture Dimension: 960 x 120 x 303mm

  • Package Dimension:

    1114 x 586 x 515mm (flight case)

    1075 x 460 x 425mm (carton)

  • Net Weight: 18 kg (fixture)

  • Gross Weight: 105 kg (flight case) / 21 kg (carton)

  • Fixture Dimension: 960 x 120 x 303mm

  • Package Dimension:

    1114 x 586 x 515mm (flight case)

    1075 x 460 x 425mm (carton)

  • Net Weight: 18 kg (fixture)

  • Gross Weight: 105 kg (flight case) / 21 kg (carton)

PACKAGE
  • 4 pcs / flight case

  • 1 pc / carton

  • 4 pcs / flight case

  • 1 pc / carton

IP RATE
  • IP 20

  • IP 20

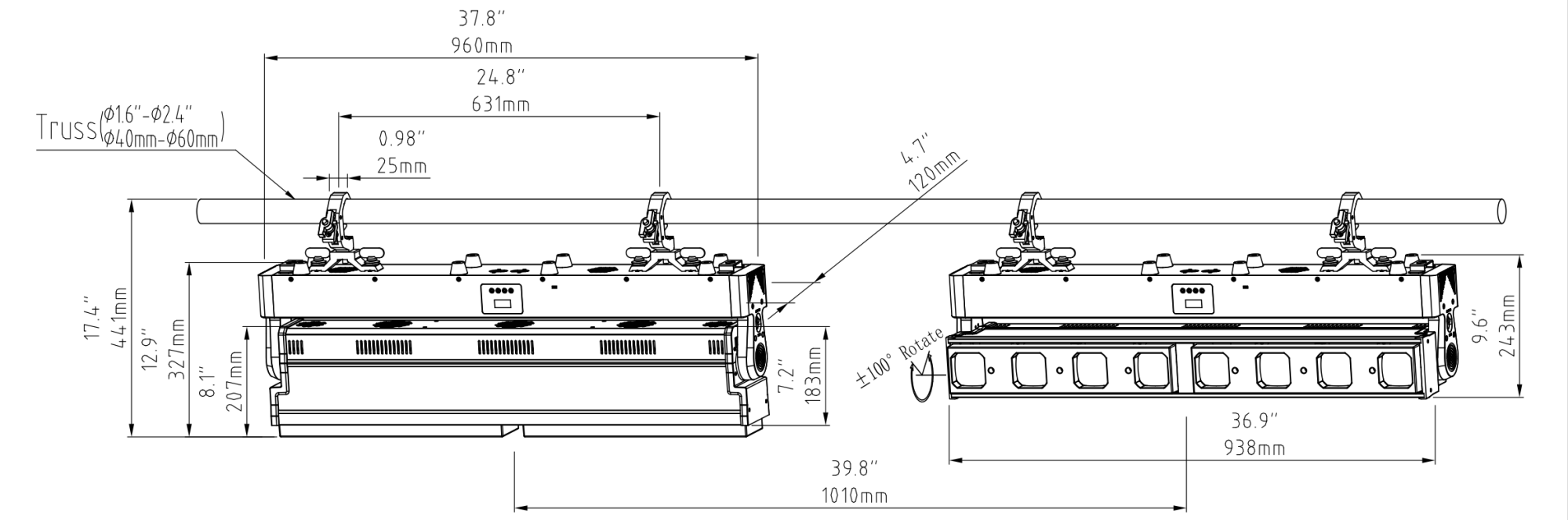

DIMENSIONS
990712210041 FINE 608 BATTEN Dimension drawing 2024-10-25_00(1)

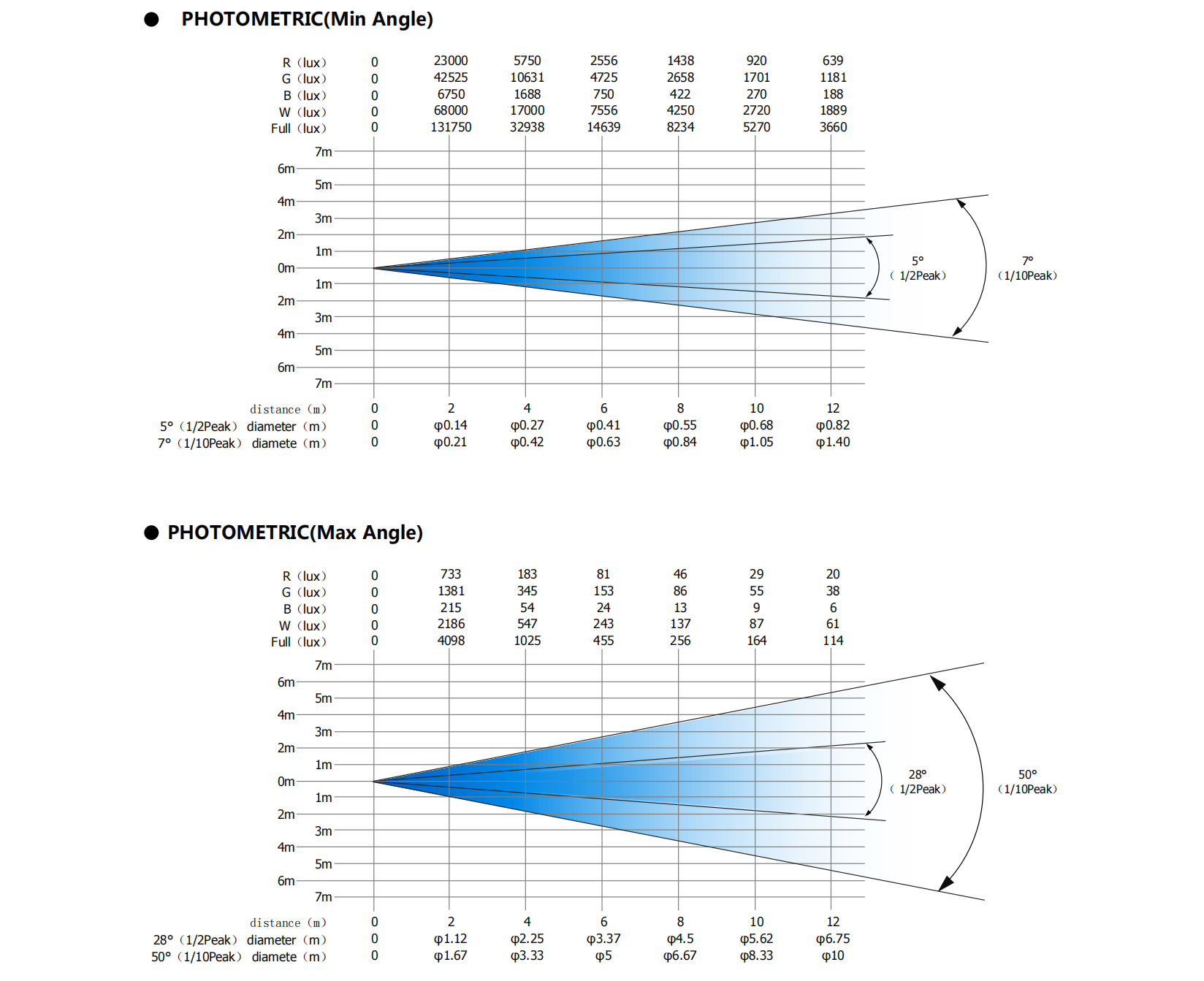

PHOTOMETRICS

FINE 608 BATTEN(OSRAM光源)英文版-20200601_00

GOBOS & COLORS
OPTIONAL ACCESSORIES
VIDEO
DOWNLOADS
Filename
Size
Uploaded
Downloading
TEKMAND
icon
FINE 608 BATTEN (TEKMAND)2024
2024-12-27
icon
MA2
icon
FINE 608 BATTEN (MA2)
2024-12-27
icon
Avolites Pearl
icon
FINE 608 BATTEN (Avolites Pearl)
2024-12-27
icon
Avolites D4
icon
FINE 608 BATTEN Stand (D4)
2024-12-27
icon
MA3 (GDTF)
icon
FINE 608 BATTEN (MA3)
2024-12-27
icon
DMX Chart
Drawings
icon
FINE 608 BATTEN Dimension drawing
2024-10-31
