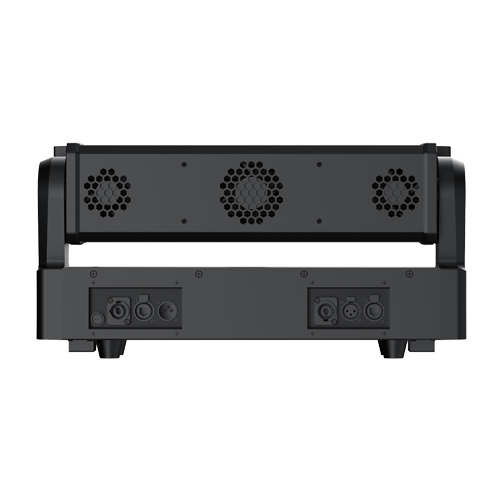

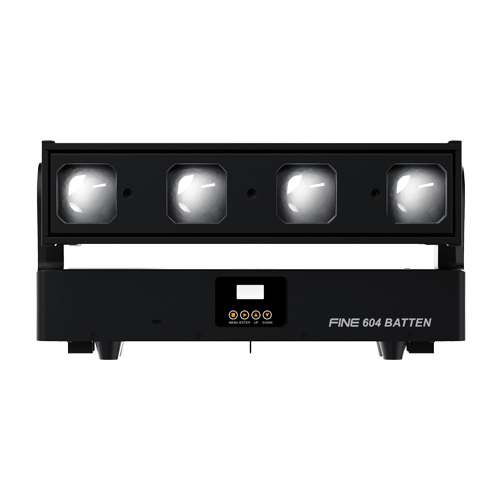

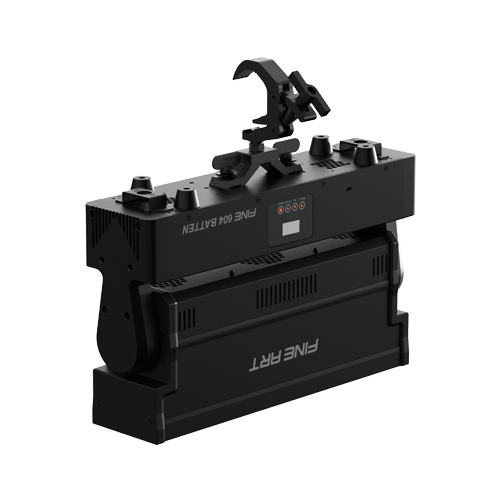

FINE 604 BATTEN
OVERVIEW
FINE 604 BATTEN is an LED moving head bar effect light featuring 4pcs 60W RGBW LEDs, with a lifespan of over 50,000 hours and light output exceeding 3,000 lumens. It utilizes a unique optical design with a wide zoom range of 5° to 50°; the narrow beam angle provides a strong, full light without overlap, while the wide angle offers excellent color mixing. The two zoom system automatically retracts when signal is disconnected, preventing damage during assembly and transport. The Y-axis can rotate up to 200°. It includes 100 built-in color macros and 47 effect macros. The product has compact structure, with a housing made of aluminum alloy and engineering plastic, making it smaller and lightweight, only 10 kg and measures 480 x 120 x 303 mm, making it ideal for entertainment, rental, television, weddings, bars, and variety shows.
TECHNICAL SPECIFICATION
LIGHT SOURCE
  • 4 pcs 60W RGBW 4 in 1 LEDs

  • Average Life expectancy≥ 50,000 h

  • 4 pcs 60W RGBW 4 in 1 LEDs

  • Average Life expectancy≥ 50,000 h

OPTICAL SYSTEM
  • Beam Angle: 5 °- 50°

  • Glass light guide + High-quality PMMA optical lens

  • Color Temperature: 2700K-8000K

  • Beam Angle: 5 °- 50°

  • Glass light guide + High-quality PMMA optical lens

  • Color Temperature: 2700K-8000K

MOVEMENT PARAMETER
  • Tilt 200°

  • Tilt 200°

CONTROL AND PROGRAMMING
  • Control channel: Stand(14)/RGB(26)/RGBW(30)/ Shape(26)

  • Protocol: DMX512, RDM, sACN, Art-net

  • DMX Connector: 3-pin XLR input/ output (5-pin for option), RJ45 Network input/output

  • USB external power interface

  • Control channel: Stand(14)/RGB(26)/RGBW(30)/ Shape(26)

  • Protocol: DMX512, RDM, sACN, Art-net

  • DMX Connector: 3-pin XLR input/ output (5-pin for option), RJ45 Network input/output

  • USB external power interface

POWER SUPPLY
  • 100-240V~, 50/60Hz

  • Input Power: 280 W

  • PF≥0.98

  • 100-240V~, 50/60Hz

  • Input Power: 280 W

  • PF≥0.98

DIMENSION AND WEIGHT
  • Fixture Dimension:480 x 120 x 303 mm

  • Package Dimension:

    1114 x 586 x 515mm (flight case)

    685 x 590 x 425mm (carton)

  • Net Weight: 10 kg (fixture)

  • Gross Weight: 108kg (flight case) /11kg(carton)

  • Fixture Dimension:480 x 120 x 303 mm

  • Package Dimension:

    1114 x 586 x 515mm (flight case)

    685 x 590 x 425mm (carton)

  • Net Weight: 10 kg (fixture)

  • Gross Weight: 108kg (flight case) /11kg(carton)

IP RATE
  • IP 20
  • IP 20

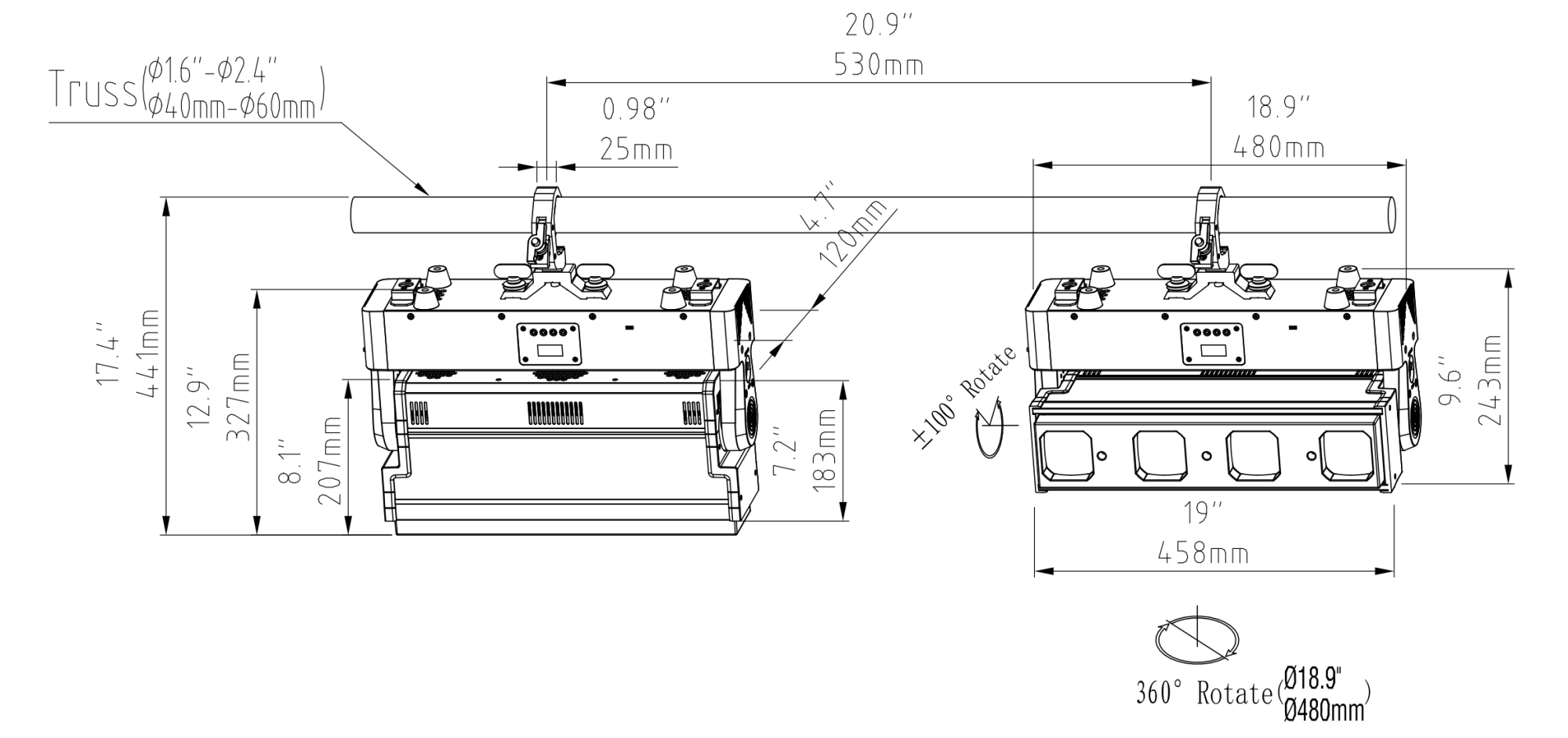

DIMENSIONS
990712210042 FINE 604 BATTEN Dimension drawing 2024-10-25_00(1)

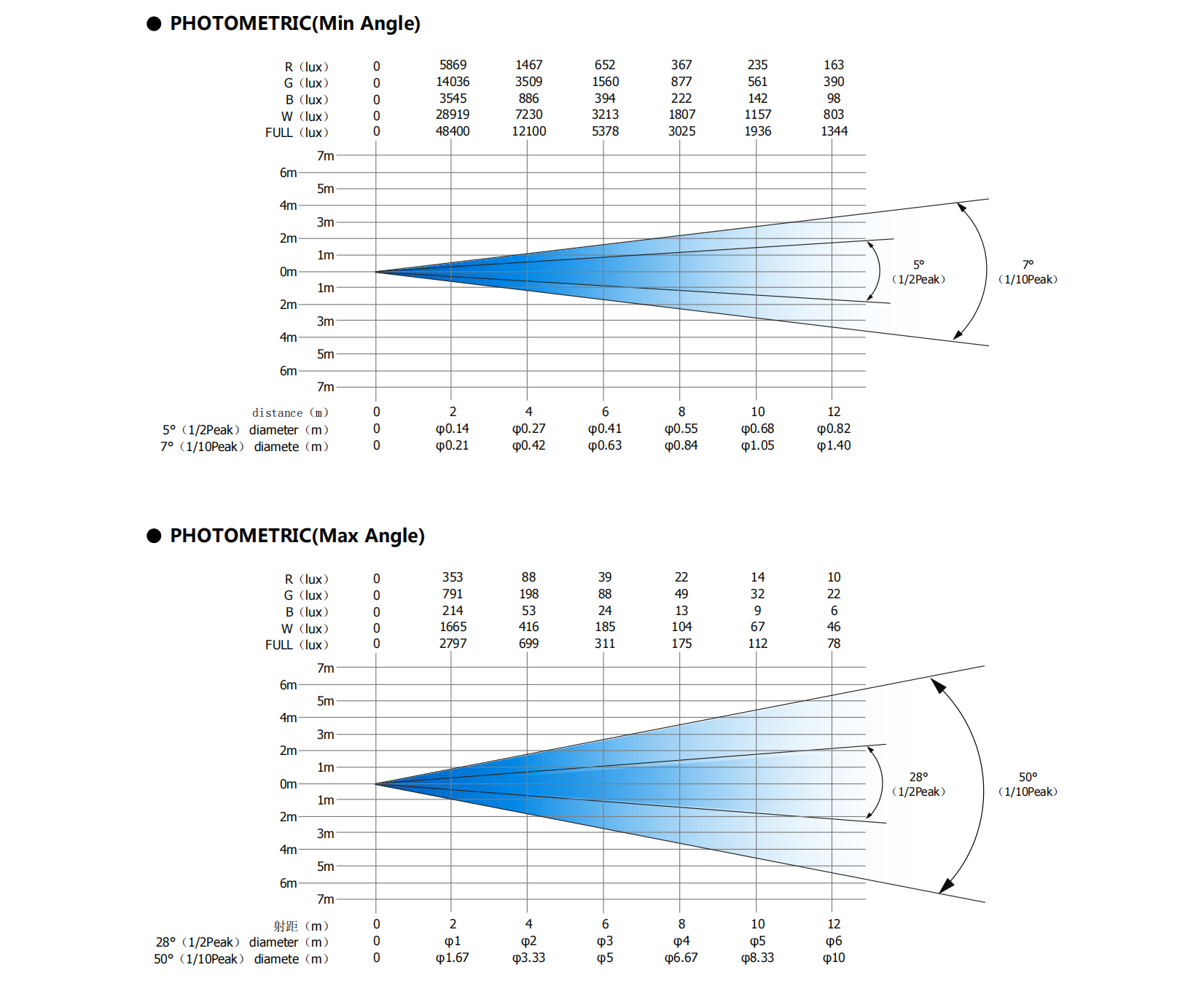

PHOTOMETRICS

FINE 604 BATTEN(OSRAM光源)英文版-20200601_00

GOBOS & COLORS
OPTIONAL ACCESSORIES
VIDEO
DOWNLOADS
Filename
Size
Uploaded
Downloading
TEKMAND
icon
FINE 604 BATTEN (TEKMAND)2024
2024-12-27
icon
MA2
icon
FINE 604 BATTEN (MA2)
2024-12-27
icon
Avolites Pearl
icon
FINE 604 BATTEN (Avolites Pearl)
2024-12-27
icon
Avolites D4
icon
FINE 604 BATTEN Stand (D4)
2024-12-27
icon
MA3 (GDTF)
icon
FINE 604 BATTEN (MA3)
2024-12-27
icon
DMX Chart
Drawings
icon
FINE 604 BATTEN Dimension drawing
2024-10-31
icon
