32x optical zoom
Day/Night Conversion (ICR)
32x optical zoom
Day/Night Conversion (ICR)
Light Source: 1500W (customization)
Life expectancy: 50000 h
CRI: Ra≥95, R9≥90, TLCI≥95
Light Source: 1500W (customization)
Life expectancy: 50000 h
CRI: Ra≥95, R9≥90, TLCI≥95

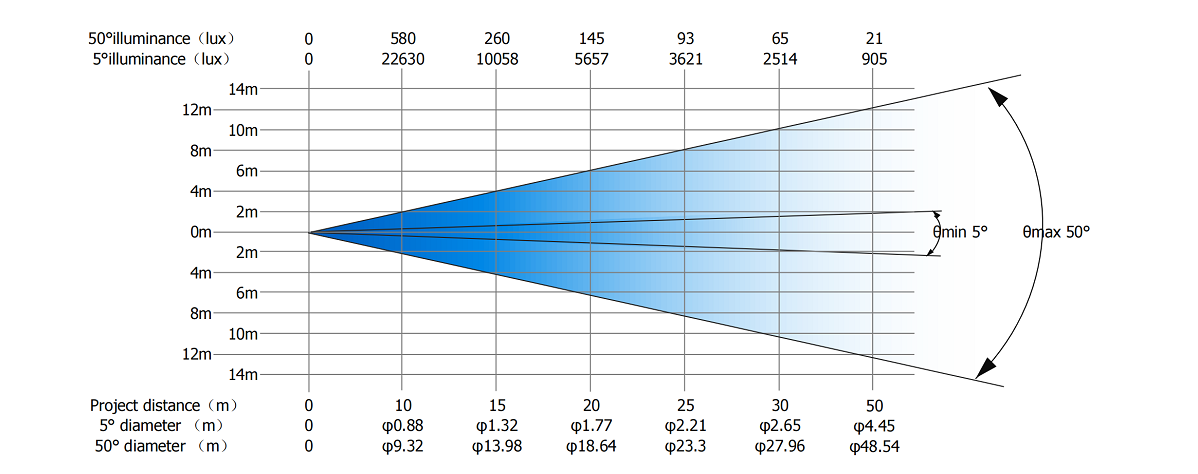

Beam angle: 5-50°
Color temperature: 6250K±250K
Beam angle: 5-50°
Color temperature: 6250K±250K
CMY infinite color mixing system
CTO color temperature linear range: 2700K-6200K
1 color wheel with 6 color filters + white
CMY infinite color mixing system
CTO color temperature linear range: 2700K-6200K
1 color wheel with 6 color filters + white

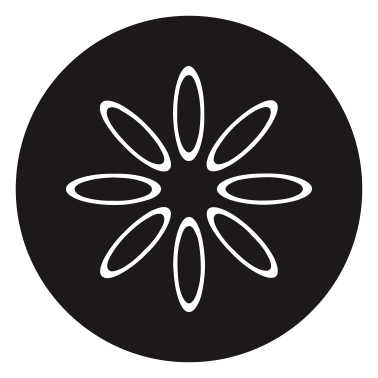

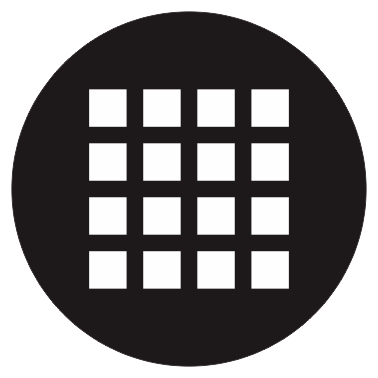

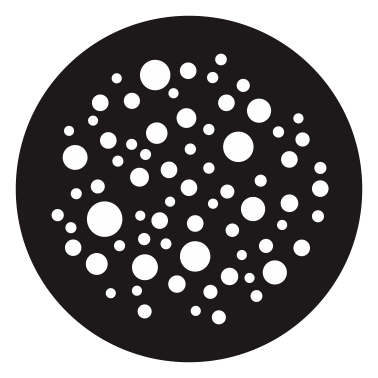

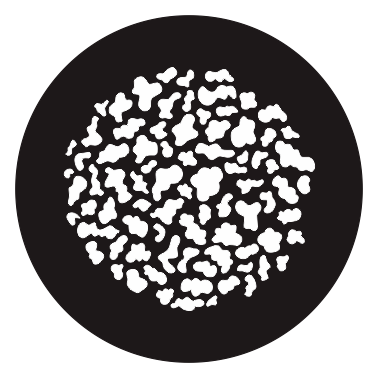

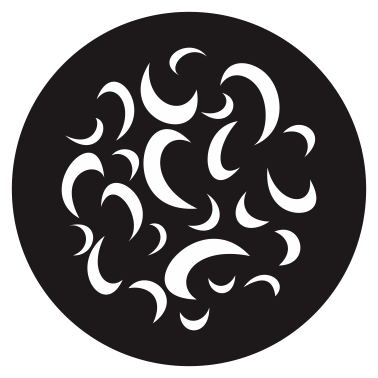

2 rotating gobo wheels, each with 6 gobos filters (pluggable) + white
The diameter of the gobo piece is Ø32.0mm, the diameter of the gobo is Ø24.0 mm, and the thickness is 1.1mm

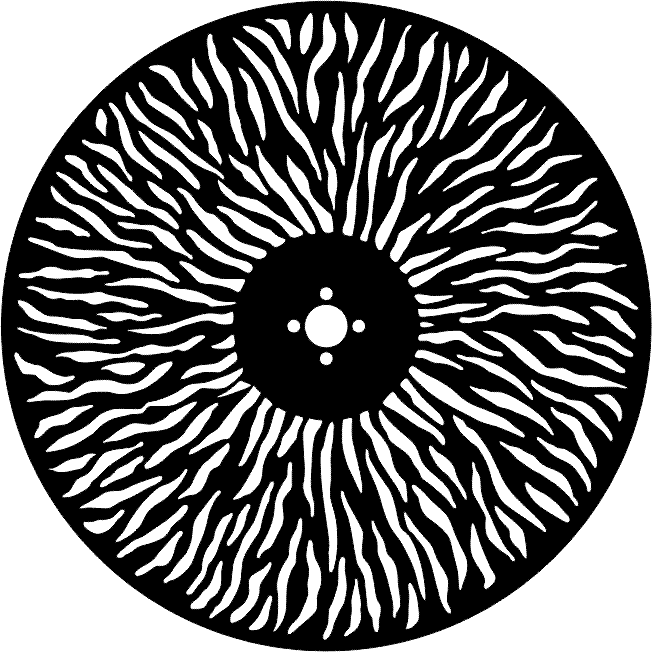

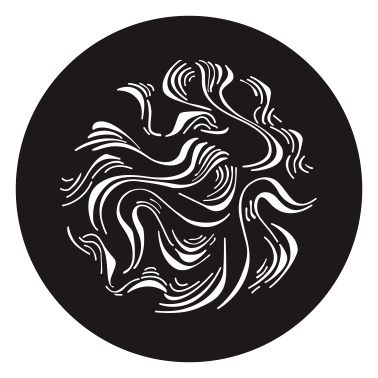

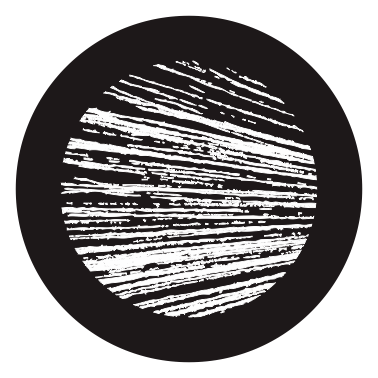

1 animation wheel , can frame in and out, stepless rotation
1 set of full directional framing system, support ±90° rotation
2 rotating gobo wheels, each with 6 gobos filters (pluggable) + white
The diameter of the gobo piece is Ø32.0mm, the diameter of the gobo is Ø24.0 mm, and the thickness is 1.1mm
1 animation wheel , can frame in and out, stepless rotation
1 set of full directional framing system, support ±90° rotation
Dimming: 0 ~ 100% linear dimming
Soft light: 2 independent atomizing pieces, 0 ~ 100% soft light effect
Stroboscopic: Fast stroboscopic, multi-stroboscopic mode selection, pulsation, asynchronous, synchronous, random slow medium fast
Prism: 1 spin four prism +1 spin four side gradient prism, can be superimposed, can be bidirectional rotation
Fast electric aperture 5-100% linear adjustment
Dimming: 0 ~ 100% linear dimming
Soft light: 2 independent atomizing pieces, 0 ~ 100% soft light effect
Stroboscopic: Fast stroboscopic, multi-stroboscopic mode selection, pulsation, asynchronous, synchronous, random slow medium fast
Prism: 1 spin four prism +1 spin four side gradient prism, can be superimposed, can be bidirectional rotation
Fast electric aperture 5-100% linear adjustment
Pan 540°, 16 Bit control
Tilt 270°, 16 Bit control
Magnetic encoder positioning system is used for pan & tilt
Pan 540°, 16 Bit control
Tilt 270°, 16 Bit control
Magnetic encoder positioning system is used for pan & tilt
Control channel: 34 (Standard)/ 42(16Bit)/ 46(Extend)
Communication protocol: DMX512/RDM protocol, Art-net protocol, wireless DMX512, sACN protocol, Art-net protocol (optional), wireless DMX512(optional)
Menu display: 3.5 inch black & white LCD display screen, Chinese/English, language can be switched at will, body can be reversed 180°display, key operation mode
Control channel: 34 (Standard)/ 42(16Bit)/ 46(Extend)
Communication protocol: DMX512/RDM protocol, Art-net protocol, wireless DMX512, sACN protocol, Art-net protocol (optional), wireless DMX512(optional)
Menu display: 3.5 inch black & white LCD display screen, Chinese/English, language can be switched at will, body can be reversed 180°display, key operation mode
Built-in self-charging battery, edit menu without power
Intelligent fan control
Heat dissipation system: intelligent heat dissipation: advanced scientific thermal system design, so that the internal system of the lamp are in a reasonable working temperature range, can extend the service life of the lamp and improve the reliability of the lamp
Electronic sensing inspection
DMX channel level monitoring
XY axis is driven by three-phase motor, low speed scanning smooth, low noise
Query the lamp information (power on time, bulb service time, fault information, etc.) through the display screen.
electronic zoom function
provides the RDM bidirectional data transfer function
You can change the DMX address code, switch on or off the light bulb, reset the machine, and switch modes from the console
You can connect the software upgrade device to the DMX port of the lamp to upgrade the software
input signal isolation protection function
Bright cloud function
Built-in self-charging battery, edit menu without power
Intelligent fan control
Heat dissipation system: intelligent heat dissipation: advanced scientific thermal system design, so that the internal system of the lamp are in a reasonable working temperature range, can extend the service life of the lamp and improve the reliability of the lamp
Electronic sensing inspection
DMX channel level monitoring
XY axis is driven by three-phase motor, low speed scanning smooth, low noise
Query the lamp information (power on time, bulb service time, fault information, etc.) through the display screen.
electronic zoom function
provides the RDM bidirectional data transfer function
You can change the DMX address code, switch on or off the light bulb, reset the machine, and switch modes from the console
You can connect the software upgrade device to the DMX port of the lamp to upgrade the software
input signal isolation protection function
Bright cloud function
Input voltage: 100-240V~ 50/60Hz
Input power: 1700W
Power factor PF≥0.98
Power socket: PowerCON input
Input voltage: 100-240V~ 50/60Hz
Input power: 1700W
Power factor PF≥0.98
Power socket: PowerCON input
Operating temperature: -10°C ~40°C
Operating temperature: -10°C ~40°C
Product size: 485 mm (19.1") (L) x 344mm (13.5") (W) x 840mm (33.1") (H)
Package size: 715mm (28.1") (L) x 605mm (23.8") (W) x 877mm (34.5") (H)
Net weight: 53.5 kg (118 lbs)
Gross weight: 94 kg (207 lbs)
Product size: 485 mm (19.1") (L) x 344mm (13.5") (W) x 840mm (33.1") (H)
Package size: 715mm (28.1") (L) x 605mm (23.8") (W) x 877mm (34.5") (H)
Net weight: 53.5 kg (118 lbs)
Gross weight: 94 kg (207 lbs)
1 set / flight case
1 set / carton case
1 set / flight case
1 set / carton case

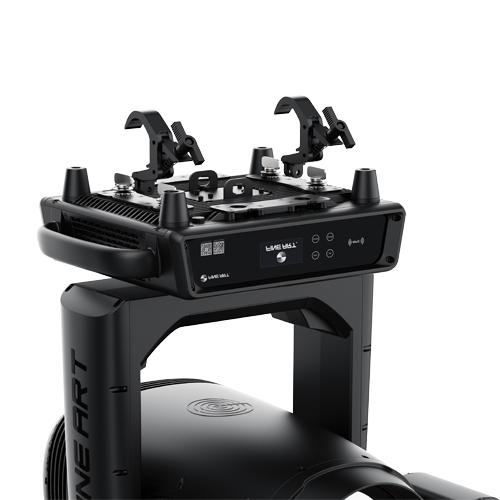

Horizontal or vertical installation, can be side-mounted
2 integrated light hooks/split light hooks suitable for φ50~60mm Truss
Safety rope connection hole
Horizontal or vertical installation, can be side-mounted
2 integrated light hooks/split light hooks suitable for φ50~60mm Truss
Safety rope connection hole
IP 66
IP 66
order code: 340301000074 (cable length: 200M)
order code: 340301000075 (cable length: 300M)
