FINE 1200C STROBE IP

OVERVIEW

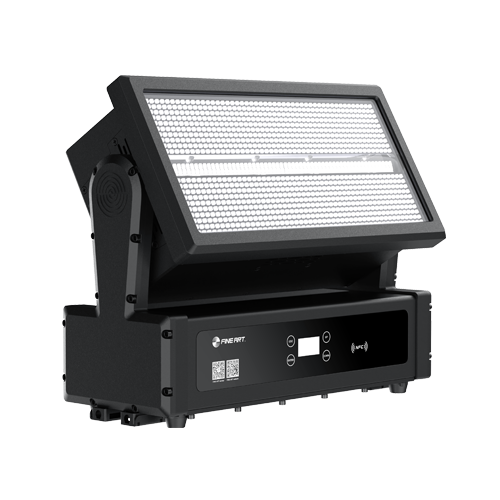

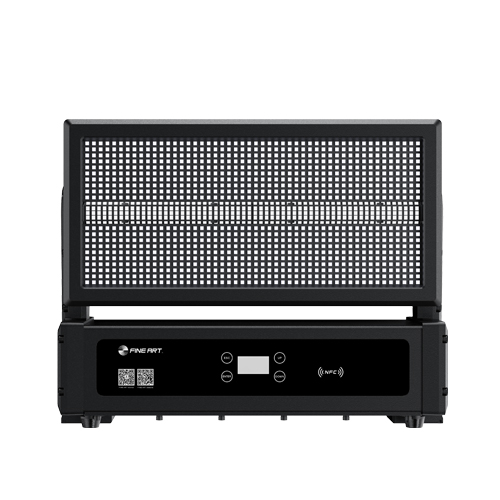

FINE 1200C STROBE IP is an excellent all-weather luminaire. The innovative design brings rich and delicate visual effects. It has up to 40 RGB color pixels, making the lighting effect layer richer. At the same time, a total of 700W high-power white light in 10 segments can burst out more than 100,000 lumens of luminous flux, bringing a very impressive visual performance. With IP66 protection, it supports all-weather outdoor use while significantly reducing maintenance costs. The 16-bit dimming technology ensures that the lamps are not only suitable for variety shows, but also meet the demanding requirements of fine dimming for theater. The breakthrough structural design allows it to achieve the same function and effect while maintaining the same size and weight as the indoor version. In addition, the built-in non-touch NFC function, through the mobile phone APP touch can operate all the functions of the lamp panel, greatly improving the convenience of use. This product is undoubtedly ideal for professional stage performances and outdoor activities.

TECHNICAL SPECIFICATION

LIGHT SOURCE

White light: 5W x 180, 6500K
Color light: 0.2W x 1000, RGB 3 in 1
Average Life expectancy: 50000h
Color rendering index: Ra: 80

White light: 5W x 180, 6500K
Color light: 0.2W x 1000, RGB 3 in 1
Average Life expectancy: 50000h
Color rendering index: Ra: 80

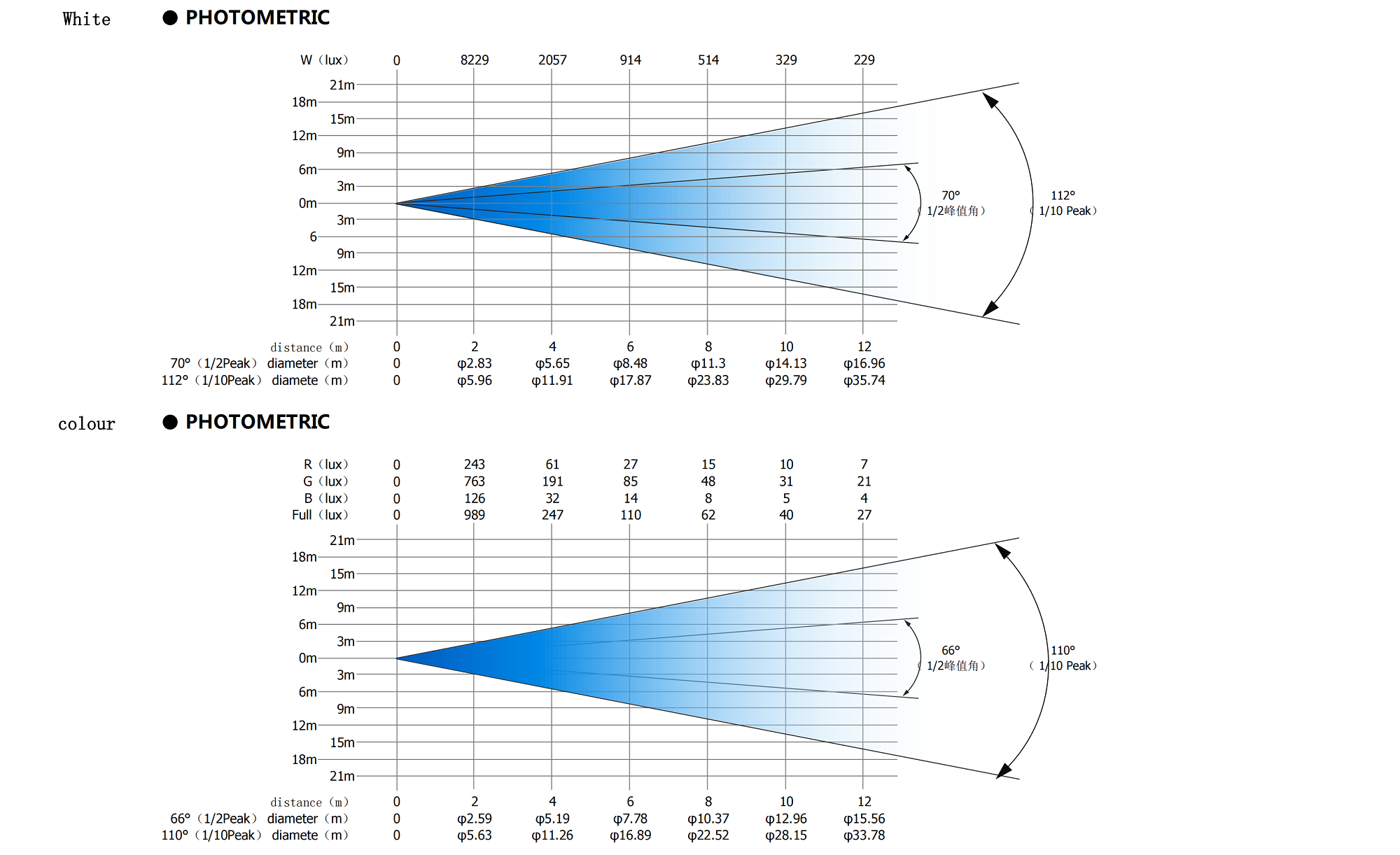

OPTICAL SYSTEM

Light Angle: 60° /110 °
Color temperature: 6500K±250K

Light Angle: 60° /110 °
Color temperature: 6500K±250K

EFFECTS

Dimming: 0 ~ 100% linear dimming, 65536 dimming accuracy
Stroboscopic: 1 ~ 25 Hz, and a variety of stroboscopic effect options
100 color macros, 96 effects macros

Dimming: 0 ~ 100% linear dimming, 65536 dimming accuracy
Stroboscopic: 1 ~ 25 Hz, and a variety of stroboscopic effect options
100 color macros, 96 effects macros

MOVEMENT PARAMETER

Vertical 182°, 16 Bit control
Optocoupler encoder positioning system

Vertical 182°, 16 Bit control
Optocoupler encoder positioning system

CONTROL AND PROGRAMMING

Channel control: Stand 23/RGB 138/SIMP 16/RGB8+130/PixDim 61/PixTen 48
Communication protocol: DMX 512/RDM protocol, Art-net protocol, sACN protocol
Menu display: black and white 1.3 inches, OLED display, Chinese/English, language can be switched at will, font can be reversed 180° display

Channel control: Stand 23/RGB 138/SIMP 16/RGB8+130/PixDim 61/PixTen 48
Communication protocol: DMX 512/RDM protocol, Art-net protocol, sACN protocol
Menu display: black and white 1.3 inches, OLED display, Chinese/English, language can be switched at will, font can be reversed 180° display

ELECTRONIC CONTROL TECHNOLOGY

Built-in self-charging battery, edit menu without power;
Heat dissipation system: intelligent heat dissipation; Advanced scientific thermal system design, so that the internal system of the lamp are in a reasonable working temperature range, can extend the service life of the lamp and improve the reliability of the lamp;
Electronic sensing detection;
DMX channel level monitoring;
Y-axis is driven by three-phase motor, low speed scanning smooth, low noise;
Query lamp information through the display screen (power on time, lamp use time, fault information, etc.
RDM data bidirectional transmission function;
From the console can be completed to change the DMX address code, switch light bulbs, machine reset, mode conversion;
The software upgrade device can be connected to the DMX port of the lamp to upgrade the software;
Input signal isolation protection function;
FINE ART cloud system

Built-in self-charging battery, edit menu without power;
Heat dissipation system: intelligent heat dissipation; Advanced scientific thermal system design, so that the internal system of the lamp are in a reasonable working temperature range, can extend the service life of the lamp and improve the reliability of the lamp;
Electronic sensing detection;
DMX channel level monitoring;
Y-axis is driven by three-phase motor, low speed scanning smooth, low noise;
Query lamp information through the display screen (power on time, lamp use time, fault information, etc.
RDM data bidirectional transmission function;
From the console can be completed to change the DMX address code, switch light bulbs, machine reset, mode conversion;
The software upgrade device can be connected to the DMX port of the lamp to upgrade the software;
Input signal isolation protection function;
FINE ART cloud system

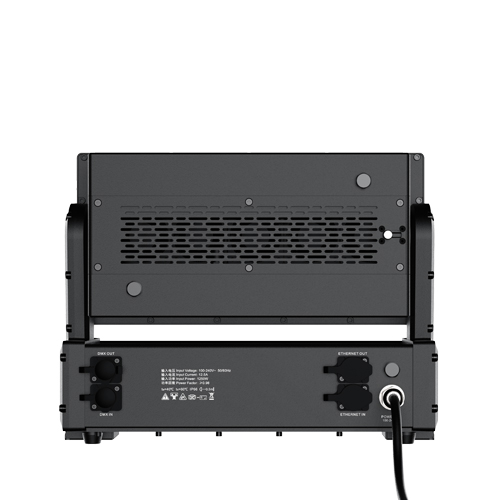

POWER SUPPLY

Input voltage: 100-240V ~; Input frequency: 50/60Hz; Input maximum current: 8A@100V
Input power: 800W@ 100V; Power factor: ≥0.98
Power socket: PowerCON input
Signal input/output: three core, RJ45 interface

Input voltage: 100-240V ~; Input frequency: 50/60Hz; Input maximum current: 8A@100V
Input power: 800W@ 100V; Power factor: ≥0.98
Power socket: PowerCON input
Signal input/output: three core, RJ45 interface

WORKING ENVIRONMENT
